Hochschularbeit
| Katja Bolz: | Thread-by-thread tear mending on linen fabric with the methylcellulose Benecel™ A4C | Zurück |
| Sprache: | Original - Übersetzung | |
| Seitenübersicht: |
|
|

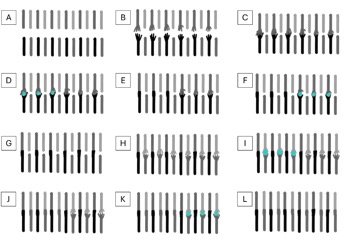

 Drawing of the tear mending procedure with the cellulose ethers. Shown arethe 12 threads per test piece, the adhesive is shown in blue.
|
|

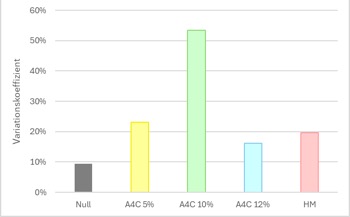

 Coefficients of variation of the recorded maximum tensile loads for the five test lines.
|
|
| Zusammenfassung: | The topic of this thesis was the choice of adhesive used for the thread-by-thread tear mending method. So far, cellulose ethers have rarely been considered for such. The aim was to investigate the extent to which Benecel™ A4C is a suitable adhesive. Hannah Flock´s findings from 2020 were the basis for the uniaxial tensile test set-up used. Strips of uncoated linen fabric were mended using Benecel™ A4C in 5, 10 and 12% concentration. The mending with a mixture of 20% sturgeon glue and 13% wheat starch paste (1+1 weighed parts) served as a reference. During the testing, the maximum tensile loads and strain were recorded. Benecel™ A4C 12% is not suitable for thread-by-thread tear mending. For one, because of hardships in the execution but mostly due to poor adhesive strength. The 5 and 10% Benecel´s show potential but record weaker tensile loads on average than the sturgeon glue mixture. However, both test sequences show a large dispersion. Therefore, more tests are required to form a definite conclusion. |
| Schlagworte: | adhesives, sturgeon glue, wheatpaste, micro-dosing device, tensile tests, maximum tensile load, tensile strain |

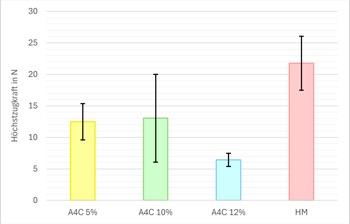

 Average maximum tensile loads of the different adhesives with standard deviation.
|
|
| weitere Angaben: |
|
| Kontakt: |
Katja Bolz katjaSbolz@[Diesen Teil loeschen]gmail.com |
| Download: |
Volltext der Hochschularbeit
(pdf-Format, ca. 12.61 MB)
Dieses Werk steht unter einer Creative Commons BY-NC-ND 3.0 Deutschland Lizenz.
|
| DOI (Digital Object Identifier) | 10.5165/hawk/553 |
| Zurück | |
Das Hornemann Institut verfügt ausschließlich über die hier angezeigten Informationen. Für weitere Informationen oder Kopien der Hochschularbeit wenden Sie sich bitte an den Autor/die Autorin - oder wenn kein Kontakt angegeben ist - an die Sekretariate der jeweiligen Fakultäten.
